| 브랜드 이름: | HWTX |
| 모델 번호: | TX-070M-10T |
| 모크: | 2 |
| 가격: | Price Negotiation |
| 배달 시간: | 15일 |

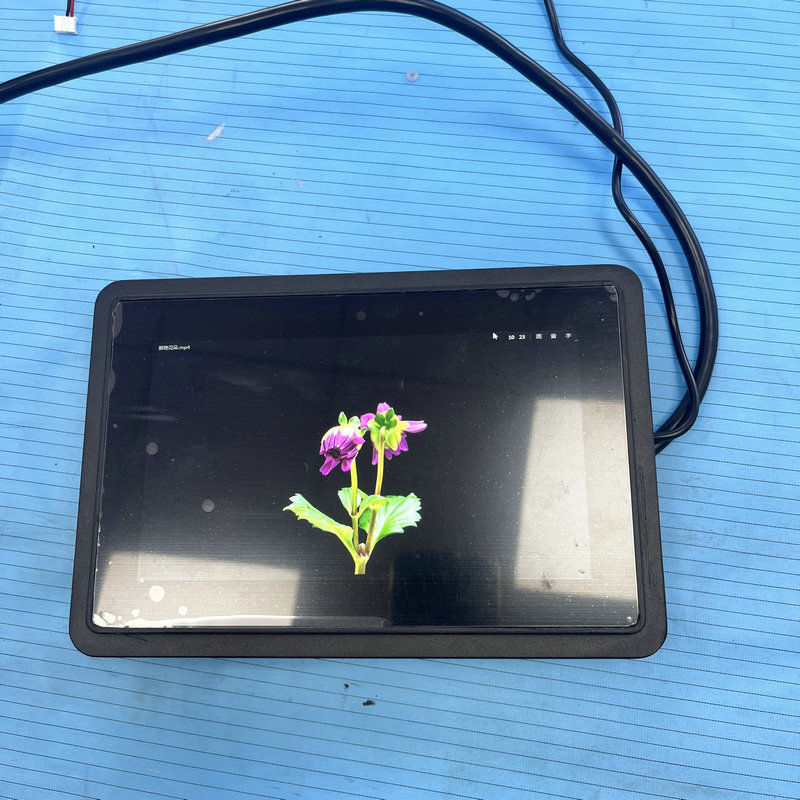

In complex outdoor environments, whether it's industrial control, smart retail, or traffic guidance, there's an urgent need for a high-performance, rugged display device. Our 7" outdoor waterproof wall mounted touchmonitor is designed to meet these demanding needs, bringing convenience and efficiency to your outdoor work and life with powerful features and reliable quality.
| Screen Size | 7inch | Primary Use | [For Outdoor Use] |
| Panel Manufacturer | INNOLUX | Dot Pitch | 0.1506(H) x 0.1432(V) |
| Resolution | 154.2144(H)x 85.92(V) | Display Area | 154.2144(H)x 85.92(V) |
| Display Ratio | 16:9 | Form Factor | 203*136.9*30mm |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | Dot Pitch | 0.0642×0.1790 mm |
| Brightness | 1000 nits | Backlight Type | White LED |
| Contrast | 500 :1 | Color | 262K/16.7M |
| Viewing Angle | 85/85/85/85 | Power Consumption | 11w |
| Panel Type | IPS | Operating Temperature | '-20~70℃ |
| Overall Weight | 1kg | Storage Temperature | -30℃ ~ 80℃ |
| Touch Type | 10-point capacitive touch | Process | full lamination |
| Input Connector | HDMI | Power Supply | DC12V |
| Water Resistance | IP66 | Speakers | No |
| Mounting Style | hanging |
비디오
비디오
비디오
비디오
비디오
비디오
비디오
비디오
|
| 브랜드 이름: | HWTX |
| 모델 번호: | TX-070M-10T |
| 모크: | 2 |
| 가격: | Price Negotiation |
| 포장에 대한 세부 사항: | 목재 케이스 |
In complex outdoor environments, whether it's industrial control, smart retail, or traffic guidance, there's an urgent need for a high-performance, rugged display device. Our 7" outdoor waterproof wall mounted touchmonitor is designed to meet these demanding needs, bringing convenience and efficiency to your outdoor work and life with powerful features and reliable quality.
| Screen Size | 7inch | Primary Use | [For Outdoor Use] |
| Panel Manufacturer | INNOLUX | Dot Pitch | 0.1506(H) x 0.1432(V) |
| Resolution | 154.2144(H)x 85.92(V) | Display Area | 154.2144(H)x 85.92(V) |
| Display Ratio | 16:9 | Form Factor | 203*136.9*30mm |
| Response Time | 10/15 (Typ.)(Tr/Td) ms | Dot Pitch | 0.0642×0.1790 mm |
| Brightness | 1000 nits | Backlight Type | White LED |
| Contrast | 500 :1 | Color | 262K/16.7M |
| Viewing Angle | 85/85/85/85 | Power Consumption | 11w |
| Panel Type | IPS | Operating Temperature | '-20~70℃ |
| Overall Weight | 1kg | Storage Temperature | -30℃ ~ 80℃ |
| Touch Type | 10-point capacitive touch | Process | full lamination |
| Input Connector | HDMI | Power Supply | DC12V |
| Water Resistance | IP66 | Speakers | No |
| Mounting Style | hanging |
